Technique to reduce the upper area of architecture with reducing the height of outer box

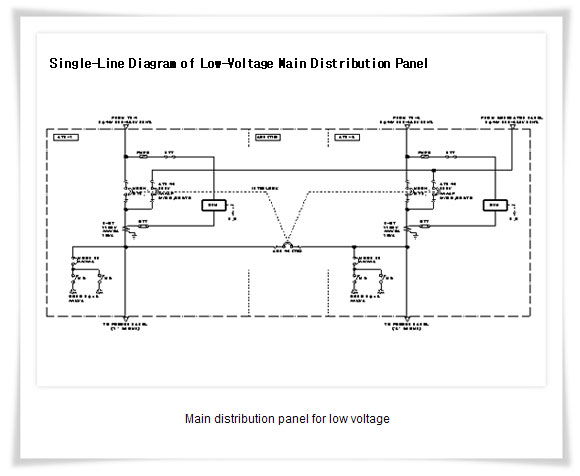

Main distribution panel for low voltage
Technique for horizontal device arrangement avoiding the upper wiring in outer box <upper wiring is the cause to heighten the outer box>
- Low-voltage main transfer panel (ATS) and Tie panel are integrated at one side and ACB is installed
at the lateral side.
- Height of distribution panel is reduced by abut 500mm and the upper installation area is reduced to
about one half.
ΆΡ Patent registration : 0665044 (28 Dec 2006)
Technique to reduce the upper area of architecture with reducing the height of outer box
Main distribution panel for low voltage
Technique for horizontal device arrangement avoiding the upper wiring in outer box
