Summary
Integrated operation and management using IT (T/S and UMPC)

Technique to reduce the upper area of architecture with reducing the height of outer box
  • Distribution panel for very high voltage
  • Main distribution panel for low voltage
  • Low-Voltage Branch Panel (MCCB)
    		•
    Expected Effect

    Technique for simplification of purchase process with standardization



    Technique to reduce the upper area of architecture with reducing the height of outer box

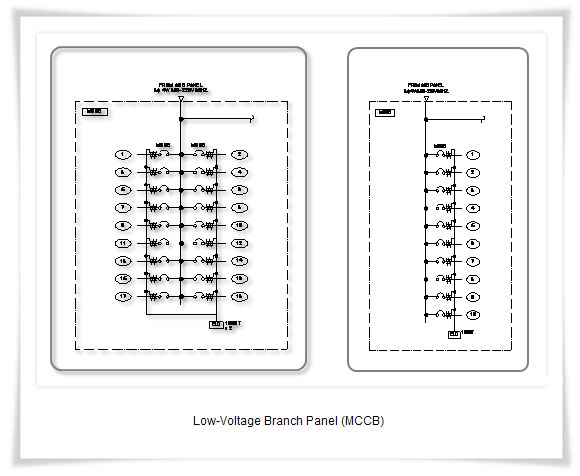

       Low-Voltage Branch Panel (MCCB)

         MCCB is separately manufactured and is separated from low-voltage insulation panel (ACB).
    - Standardization of 16 types consisted of 600mm, 700mm, and 800mm of width and 1200mm of depth
    - Application of BB Kit type assembling-type booth bar and ZCT-mounting MCCB
    - 2,100mm of height
